首頁進口晶振 AEL晶振ELS13-32.768kHz-T,AEL進口晶振,7015mm,儀器儀表晶振

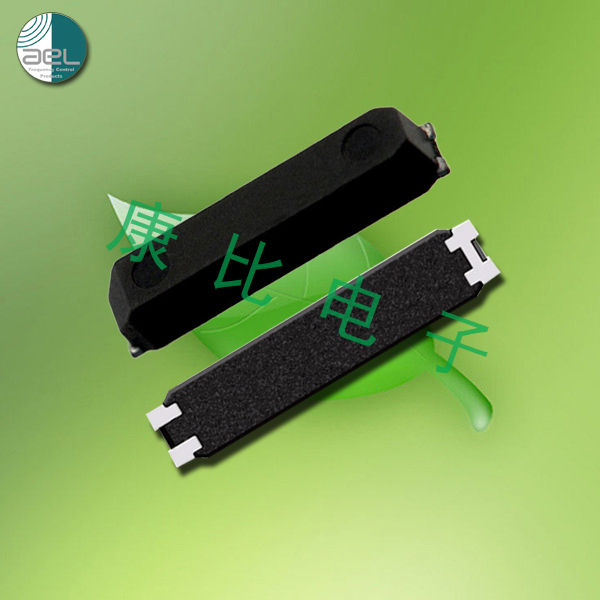

ELS13-32.768kHz-T,AEL進口晶振,7015mm,儀器儀表晶振

產品型號：46561445
頻率：32.768KHz
尺寸：7.0x1.5x1.4mm
產品介紹：ELS13-32.768kHz-T,AEL進口晶振,7015mm,儀器儀表晶振,ELS13,SMD晶振，英國進口晶振，AEL艾爾晶振，型號：ELS13系列，編碼為：ELS13-32.768kHz-T，頻率：32.768KHz...

ELS13-32.768kHz-T,AEL進口晶振,7015mm,儀器儀表晶振,ELS13,SMD晶振，英國進口晶振，AEL艾爾晶振，型號：ELS13系列，編碼為：ELS13-32.768kHz-T，頻率：32.768KHz，負載電容：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：7.0x1.5x1.4mm，四腳貼片晶振，石英晶振，無源晶振，陶瓷晶振，SMD晶振，石英晶體諧振器，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點，應用于：無線網絡晶振，移動通訊晶振，儀器儀表設備晶振，測試設備晶振，智能家居晶振等應用。
ELS13-32.768kHz-T,AEL進口晶振,7015mm,儀器儀表晶振,ELS13,SMD晶振，產品特點：
•SMD音叉晶體諧振器
•公差：±20ppm
•工作溫度-40°C至+85°C

ELS13-32.768kHz-T,AEL進口晶振,7015mm,儀器儀表晶振,ELS13,SMD晶振,參數表

PARAMETERS				MAX (Unless otherwise noted)
Frequency				32.768 kHz
Operating Temperature				-40°C to +85°C
Turn Over Temperature				+20°C to +30°C
Storage Temperature				-55°C to +125°C
Frequency Tolerance @ 25°C				± 20PPM, see options
Frequency Coefficient				-0.035±0.01 PPM / (?°C)2
Equivalent Series Resistance (R1)				65kOhms
Load Capacitance (CL)				12.5 pF, see options
Drive Level				1 μW
Aging@25°C±3°C First year				± 3ppm
Insulation Resistance@ 100Vdc ± 15V				500 MOhms
RoHS Compliant				Yes
Pb Free				Yes
Moisture Sensitivity Level				1

ELS13-32.768kHz-T,AEL進口晶振,7015mm,儀器儀表晶振,ELS13,SMD晶振,尺寸圖

產品編碼	晶振廠家	頻率	長度	寬度	高度
ELS07-32.768kHz-6-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS06-32.768kHz-9-T	AEL晶振	32.768 kHz	2mm	1.2mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	32.768 kHz	1.6mm	1mm	0.5mm
X32K768L025	AEL晶振	32.768 kHz	2.1mm	6.2mm	13.2mm
X32K768L104	AEL晶振	32.768 kHz	2.9mm	8mm	17mm
X32K768S003	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S012	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S013	進口晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S020	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S021	AEL晶振	32.768 kHz	4.1mm	1.5mm	0.7mm
X32K768S036	AEL晶振	32.768 kHz	10.41mm	4.06mm	3.56mm
X32K768S038	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S041	AEL晶振	32.768 kHz	4mm	1.5mm	0.7mm
X32K768S045	AEL晶振	32.768 kHz	2mm	6mm	9mm
X32K768S051	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S067	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S073	AEL晶振	32.768 kHz	6mm	2.5mm	8.3mm
X32K768S112	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S115	AEL晶振	32.768 kHz	8mm	4mm	2.4mm
X32K768S134	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S233	AEL晶振	32.768 kHz	10.4mm	4mm	3.5mm
X32K768S239	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S300	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
