首頁進口晶振 FOX晶振FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振

FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振

產品型號：1809367
頻率：27.000MHz
尺寸：2.0x1.6mm
產品介紹：FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振，美國進口晶振，FOX福克斯晶振，型號：FC1BQ，編碼為：FC1BQECMM27.0-T3，頻率為：27.000MHz，是一款小體積晶...

FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振，美國進口晶振，FOX福克斯晶振，型號：FC1BQ，編碼為：FC1BQECMM27.0-T3，頻率為：27.000MHz，是一款小體積晶振，尺寸：2.0x1.6mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，SMD晶振，石英晶振，石英晶體諧振器，無鉛晶振，工作溫度范圍：-40℃至+85℃。進口晶振，具有超小型，輕薄型，高精度，高性能，高品質，高穩定性，耐熱及耐環境特點。被廣泛應用于：通訊設備，無線網絡，藍牙模塊，智能穿戴設備，小型便捷式設備，智能手機，平板電腦，智能家居，游戲機設備，汽車電子，醫療設備，安防設備，遙控器設備應用等。

FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振,參數表

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

27.000 MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

(See options below)
-55°C ~ +125°C

Shunt Capacitance (CO)

2 pF

Load Capacitance (CL)

(See options below)

Drive Level

100µW

Aging per year (@ 25°C)

±5 PPM

Insulation Resistance

500Mohm Min

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

Termination Finish

Fired Silver (Ag) Paste

Seal Method

Resin Seal

Lead (Pb) Free

Yes

RoHS/REACH Compliant

Yes

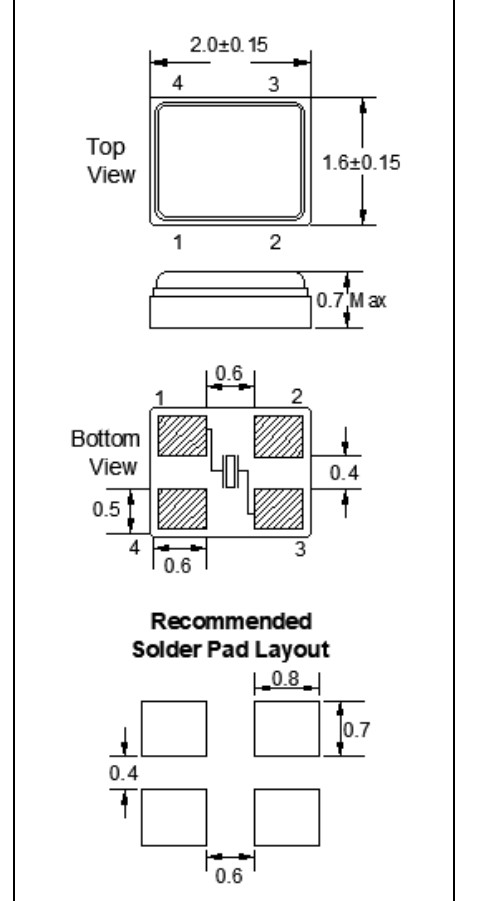

FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振,尺寸圖

FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振
產品特點：
外形尺寸：2.0x1.6mm石英晶振
頻率范圍：16.000MHz~54.000MHz

公差低至10PPM

穩定性低至10PPM

溫度范圍寬至-40℃至+85℃

石英晶體諧振器	廠家	型號	頻率	包裝/封裝	頻率穩定度
FQ5032B-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±30ppm
FQ5032B-25.000	Fox晶振	C5BQ	25MHz	4-SMD, No Lead	±30ppm
FQ3225B-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FX252BS-16.000	Fox晶振	FX252B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±30ppm
FQ3225B-25.000	Fox晶振	FQ3225B	25MHz	4-SMD, No Lead	±50ppm
FQ3225B-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FX425B-12.000	Fox晶振	FX425B	12MHz	4-SMD, No Lead	±50ppm
FQ5032B-18.432	Fox晶振	C5BQ	18.432MHz	4-SMD, No Lead	±30ppm
FX252BS-24.000	Fox晶振	FX252B	24MHz	4-SMD, No Lead	±50ppm
FQ5032B-24.576	Fox晶振	C5BQ	24.576MHz	4-SMD, No Lead	±30ppm
FQ5032B-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±30ppm
FQ5032B-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±30ppm
FQ5032BR-25.000	Fox晶振	C5BQ	25MHz	4-SMD, No Lead	±50ppm
FQ5032BR-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±50ppm
FQ5032BR-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±50ppm
FQ3225B-16.000	福克斯晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225B-27.000	Fox晶振	FQ3225B	27MHz	4-SMD, No Lead	±50ppm
FQ3225BR-25.000	Fox晶振	FQ3225B	25MHz	4-SMD, No Lead	±50ppm
FQ3225BR-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FQ3225BR-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FX252BS-20.000	Fox晶振	FX252B	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ5032BR-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±50ppm
FX532B-10.000	Fox晶振	FX532B	10MHz	4-SMD, No Lead	±50ppm
FX425B-16.000	Fox晶振	FX425B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-19.6608	Fox晶振	C5BQ	19.6608MHz	4-SMD, No Lead	±30ppm
FQ5032B-14.7456	Fox晶振	C5BQ	14.7456MHz	4-SMD, No Lead	±30ppm
FQ5032B-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ3225B-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
FQ3225BR-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
603-12-67	Fox晶振	FX325BS	12MHz	4-SMD, No Lead	±50ppm
617-24.572675-1	Fox晶振	FX216B	24.572675MHZ	4-SMD, No Lead	±50ppm
FX532B-11.0592	Fox晶振	FX532B	11.0592MHz	4-SMD, No Lead	±50ppm
FX532B-12.000	Fox晶振	FX532B	12MHz	4-SMD, No Lead	±50ppm
FX532B-16.000	Fox晶振	FX532B	16MHz	4-SMD, No Lead	±50ppm
FX532B-20.000	Fox晶振	FX532B	20MHz	4-SMD, No Lead	±50ppm
FX532B-24.000	Fox晶振	FX532B	24MHz	4-SMD, No Lead	±50ppm
FX532B-24.576	Fox晶振	FX532B	24.576MHz	4-SMD, No Lead	±50ppm
FX425B-20.000	Fox晶振	FX425B	20MHz	4-SMD, No Lead	±50ppm
FX425B-24.000	Fox晶振	FX425B	24MHz	4-SMD, No Lead	±50ppm
FX425B-24.576	Fox晶振	FX425B	24.576MHz	4-SMD, No Lead	±50ppm
603-25-203	Fox晶振	FX325BS	25MHz	4-SMD, No Lead	±50ppm
603-40-48	Fox晶振	FX325BS	40MHz	4-SMD, No Lead	±20ppm
603-25-261	Fox晶振	FX325BS	25MHz	4-SMD, No Lead	±20ppm
