首頁進口晶振 IDT晶振艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器

產品型號：2337480
頻率：156.250MHz
尺寸：7.0x5.0mm
產品介紹：艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，美國進口晶振，IDT艾迪悌晶振，型號4MA系列，編碼為：4MA156250Z4AA...

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，美國進口晶振，IDT艾迪悌晶振，型號4MA系列，編碼為：4MA156250Z4AACUGI8，頻率為：156.250MHz，小體積尺寸7.0x5.0mm，六腳貼片晶振，LVDS輸出差分晶振，有源晶振，石英晶體振蕩器，石英晶振，高性能差分MEMS振蕩器，穩定性： ± 50 ppm，電源電壓：2.5V和3.3V，標準包：5.0 x 3.2 mm；7.0 x 5.0 mm，RMS相位抖動：0.6 ps典型（12k至20MHz），工作溫度：- 40至85°C。貼片晶振具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，低耗能，低損耗，低電平等特點。應用于：通訊設備，無線網絡，藍牙模塊，物聯網，汽車電子，醫療設備，數碼電子，路由器，交換機，數字通信系統，雷達，測量儀器，頻率合成器等。

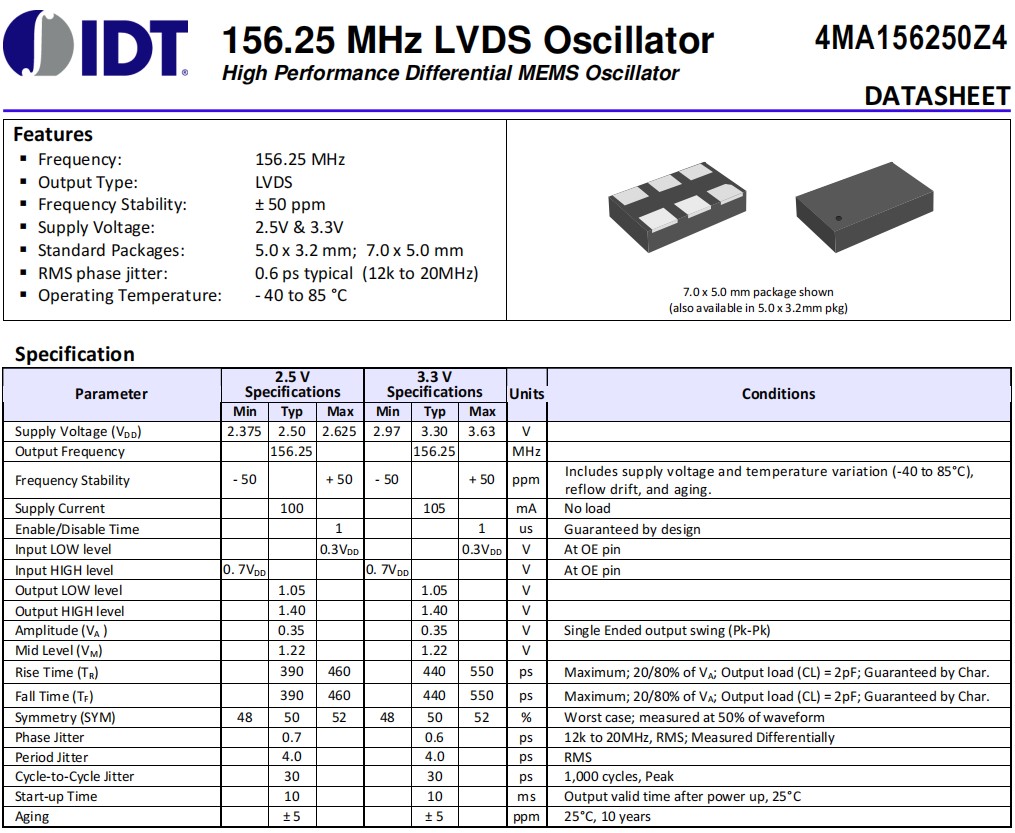

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，參數表

Parameter

2.5 V
Specifications

3.3 V
Specifications

Units

Conditions

Min

Typ

Max

Min

Typ

Max

Supply Voltage (VDD)

2.375

2.50

2.625

2.97

3.30

3.63

Output Frequency

156.25

MHz

Frequency Stability

- 50

+ 50

- 50

+ 50

ppm

Includes supply voltage and temperature variation (-40 to 85°C),
reflow drift, and aging.

Supply Current

100

105

No load

Enable/Disable Time

Guaranteed by design

Input LOW level

0.3VDD

At OE pin

Input HIGH level

0. 7VDD

At OE pin

Output LOW level

1.05

Output HIGH level

1.40

Amplitude (VA )

0.35

Single Ended output swing (Pk-Pk)

Mid Level (VM)

1.22

Rise Time (TR)

390

460

440

550

Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.

Fall Time (TF)

390

460

440

550

Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.

Symmetry (SYM)

Worst case; measured at 50% of waveform

Phase Jitter

0.7

0.6

12k to 20MHz, RMS; Measured Differentially

Period Jitter

4.0

RMS

Cycle-to-Cycle Jitter

1,000 cycles, Peak

Start-up Time

Output valid time after power up, 25°C

Aging

± 5

ppm

25°C, 10 years

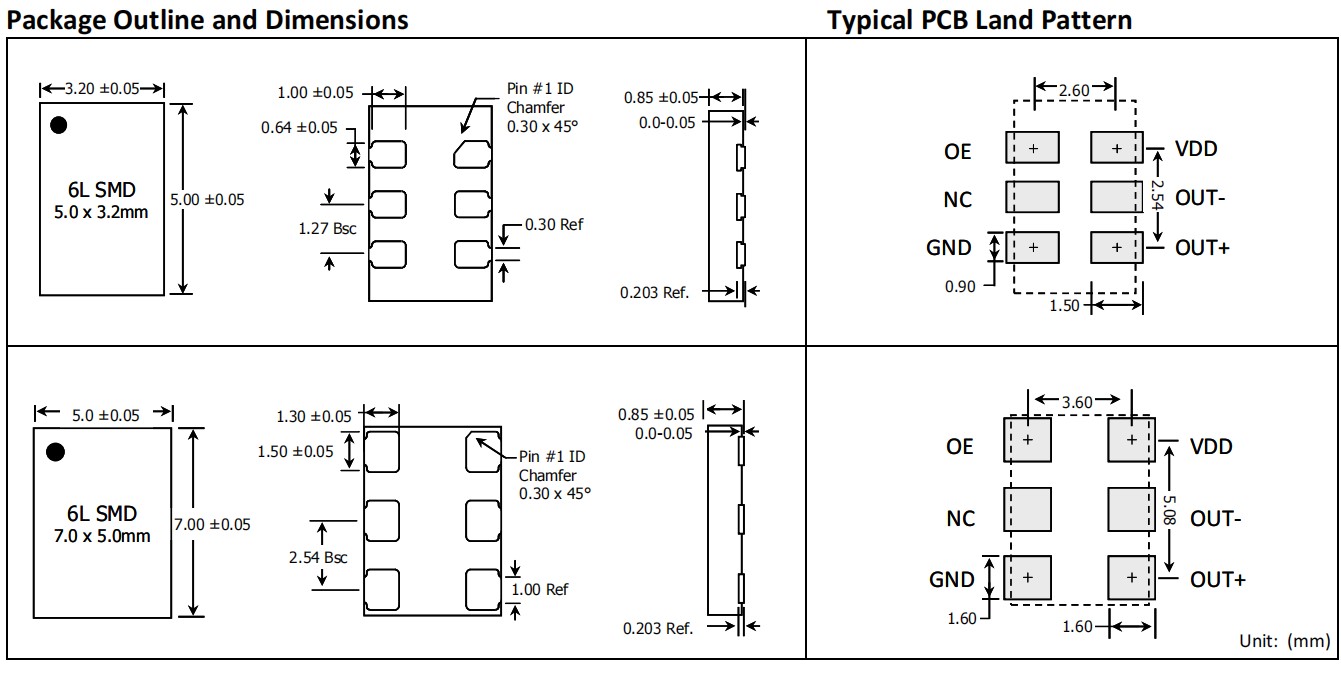

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，尺寸圖

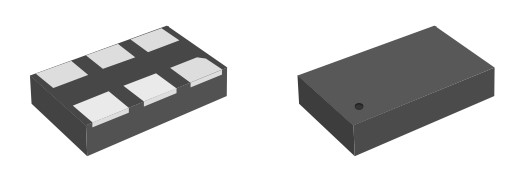

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振
差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,高技術石英晶體振蕩器,具有相位低,損耗低的特點,差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性.

原廠代碼	品牌	有源晶振	型號	頻率	輸出
4MA150000Z4AACTGI	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA155520Z4AACTGI	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA156250Z4AACTGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
IDT4MA150000Z3AACUGI8	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
IDT4MA156250Z3AACUGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
4MA150000Z3AACUGI	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z4AACTGI8	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA150000Z4AACUGI	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA150000Z4AACUGI8	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA150000Z4BACTGI	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA150000Z4BACTGI8	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA155520Z4AACTGI8	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA155520Z4BACTGI	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA155520Z4BACTGI8	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA156250Z3AACTGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
4MA156250Z3AACUGI	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
4MA156250Z3BACTGI	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
4MA156250Z3BACTGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
4MA156250Z3BACUGI	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
4MA156250Z3BACUGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
4MA156250Z4AACTGI8	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
4MA156250Z4AACUGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
4MA156250Z4AACUGI8	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
4MA156250Z4BACTGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
4MA156250Z4BACTGI8	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
4MA159375Z4AACTGI	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA159375Z4AACTGI8	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA159375Z4BACTGI	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA159375Z4BACTGI8	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA150000Y3AACTGI	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Y3AACTGI8	IDT晶振	150.000MHZ LVPECL 進口晶振	4MA	150MHz	LVPECL
4MA150000Y3AACUGI	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Y3AACUGI8	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z3AACTGI8	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z3BACTGI	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z3BACTGI8	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z3BACUGI	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z3BACUGI8	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z4BACUGI	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA150000Z4BACUGI8	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA155520Z3AACTGI8	IDT晶振	OSC MEMS 155.52MHZ LVPECL SMD	4MA	155.52MHz	LVPECL
4MA155520Z3AACUGI	IDT晶振	OSC MEMS 155.52MHZ LVPECL SMD	4MA	155.52MHz	LVPECL
4MA155520Z3AACUGI8	IDT晶振	OSC MEMS 155.52MHZ LVPECL SMD	4MA	155.52MHz	LVPECL
4MA155520Z3BACTGI	IDT晶振	OSC MEMS 155.52MHZ LVPECL SMD	4MA	155.52MHz	LVPECL
4MA155520Z3BACTGI8	IDT晶振	OSC MEMS 155.52MHZ LVPECL SMD	4MA	155.52MHz	LVPECL
4MA155520Z3BACUGI	IDT晶振	OSC MEMS 155.52MHZ LVPECL SMD	4MA	155.52MHz	LVPECL
4MA155520Z3BACUGI8	IDT晶振	OSC MEMS 155.52MHZ LVPECL SMD	4MA	155.52MHz	LVPECL
4MA155520Z4AACUGI	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA155520Z4AACUGI8	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA155520Z4BACUGI	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA155520Z4BACUGI8	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA156250Z4BACUGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
4MA156250Z4BACUGI8	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
4MA159375Z3AACTGI8	IDT晶振	OSC MEMS 159.375MHZ LVPECL SMD	4MA	159.375MHz	LVPECL
4MA159375Z3AACUGI	IDT晶振	OSC MEMS 159.375MHZ LVPECL SMD	4MA	159.375MHz	LVPECL
4MA159375Z3AACUGI8	IDT晶振	OSC MEMS 159.375MHZ LVPECL SMD	4MA	159.375MHz	LVPECL
4MA159375Z3BACTGI	IDT晶振	OSC MEMS 159.375MHZ LVPECL SMD	4MA	159.375MHz	LVPECL
4MA159375Z3BACTGI8	IDT晶振	OSC MEMS 159.375MHZ LVPECL SMD	4MA	159.375MHz	LVPECL
4MA159375Z3BACUGI	IDT晶振	OSC MEMS 159.375MHZ LVPECL SMD	4MA	159.375MHz	LVPECL
4MA159375Z3BACUGI8	IDT晶振	OSC MEMS 159.375MHZ LVPECL SMD	4MA	159.375MHz	LVPECL
4MA159375Z4AACUGI	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA159375Z4AACUGI8	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA159375Z4BACUGI	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA159375Z4BACUGI8	IDT晶振	OSC MEMS 159.375MHZ LVDS SMD	4MA	159.375MHz	LVDS
4MA156600Z4BACUGI	IDT晶振	OSC MEMS	4MA	156.6MHz	LVDS
4MA156600Z4BACUGI8	IDT晶振	OSC MEMS	4MA	156.6MHz	LVDS
